Cala 72H
SKU DPG720C
Avail. Available

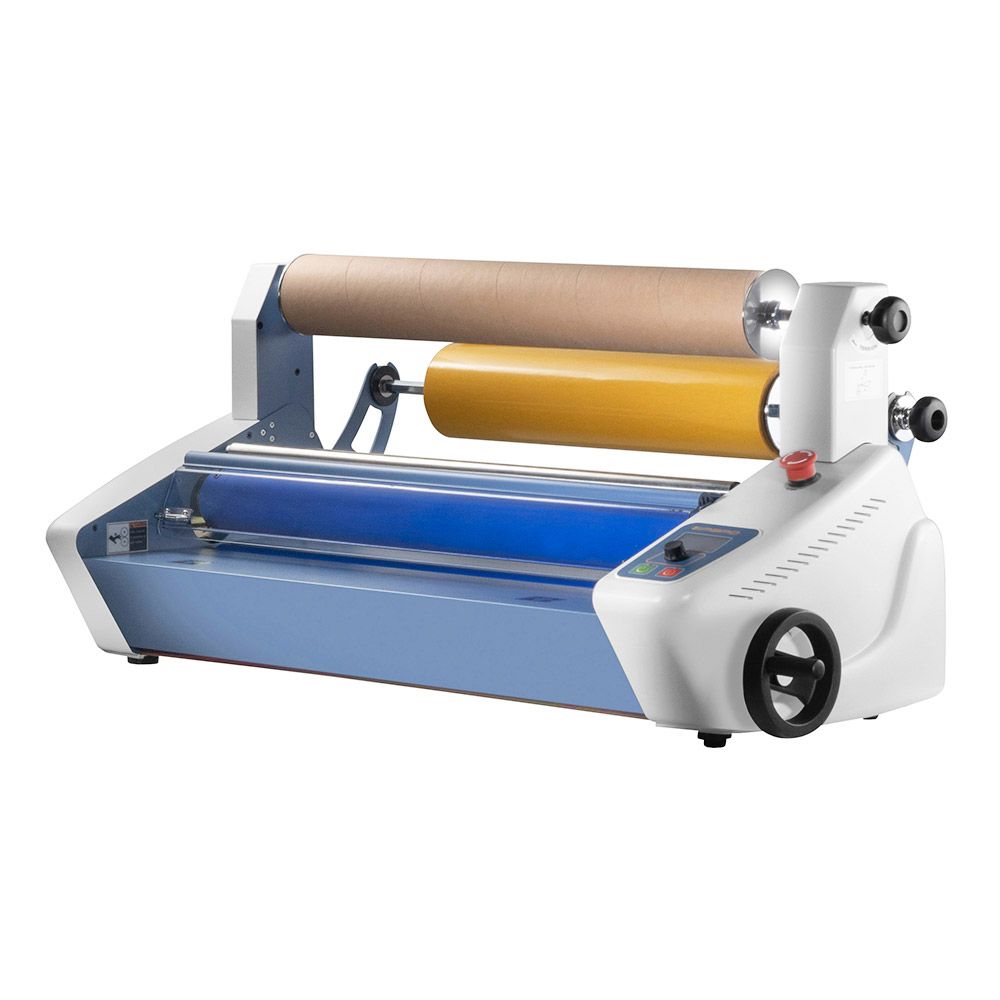

Cala 72H is an electric wide-format laminator featuring a heat-assisted top roller. It is the ideal solution for a wide variety of applications: single-sided lamination, vinyl application, mounting prints onto boards up to 15 mm thick, and much more.Operation is controlled via an electric foot pedal or through the innovative MSC® Interface—a simple, intuitive control panel where a single button allows even less experienced operators to quickly select the required job parameters.Thanks to a high-sensitivity temperature sensor, the new software also enables high-precision monitoring of the ongoing job and calculates its profitability (the operator can view the exact film consumption used for lamination directly on the display).Cala 72H is also equipped with a motorized liner take-up rewinder and a top roller heatable up to 60°C, consistently ensuring smooth, uniform lamination free from the common "silvering" effect.Cala 72H is covered by a 3-year warranty on spare parts (or 10,000 m of film used, whichever comes first; rollers are excluded from the extended warranty).
Cold laminator with upper roller heated
Cala 72H is an electric wide-format laminator featuring a heat-assisted top roller. It is the ideal solution for a wide variety of applications: single-sided lamination, vinyl application, mounting prints onto boards up to 15 mm thick, and much more.

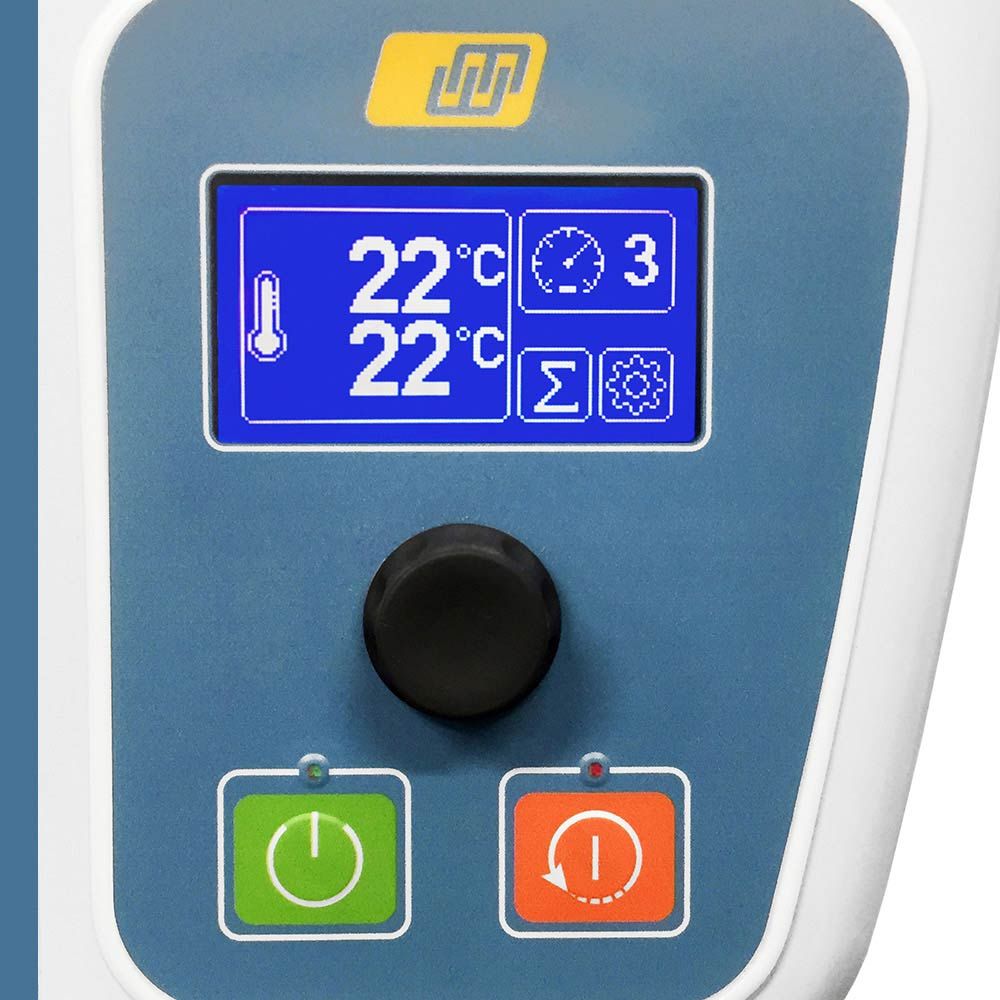

Operation is controlled via an electric foot pedal or through the innovative MSC® Interface—a simple, intuitive control panel where a single button allows even less experienced operators to quickly select the required job parameters.
Thanks to a high-sensitivity temperature sensor, the new software also enables high-precision monitoring of the ongoing job and calculates its profitability (the operator can view the exact film consumption used for lamination directly on the display).
Cala 72H is also equipped with a motorized liner take-up rewinder and a top roller heatable up to 60°C, consistently ensuring smooth, uniform lamination free from the common "silvering" effect.
Cala 72H is covered by a 3-year warranty on spare parts (or 10,000 m of film used, whichever comes first; rollers are excluded from the extended warranty).
Operation is controlled via an electric foot pedal or through the innovative MSC® Interface—a simple, intuitive control panel where a single button allows even less experienced operators to quickly select the required job parameters.
Thanks to a high-sensitivity temperature sensor, the new software also enables high-precision monitoring of the ongoing job and calculates its profitability (the operator can view the exact film consumption used for lamination directly on the display).
Cala 72H is also equipped with a motorized liner take-up rewinder and a top roller heatable up to 60°C, consistently ensuring smooth, uniform lamination free from the common "silvering" effect.
Cala 72H is covered by a 3-year warranty on spare parts (or 10,000 m of film used, whichever comes first; rollers are excluded from the extended warranty).
Max laminating width: 720 mm
Paper entry width: 750 mm
Max speed: 9 m/min
Top roller temperature: 60°C
Max substrate thickness: 15 mm
Roller diameter: Ø 70 mm
Liner take-up rewinder: yes
Tension adjustment: manual
Anti-jam reverse function: yes
Operation: foot pedal or control panel
Advanced control system: MSC® Interface
Power supply: 230V – 50/60 Hz
Power consumption: 780 W
Dimensions: 1,120 (W) × 540 (D) × 470 (H) mm
Weight: 45 kg
