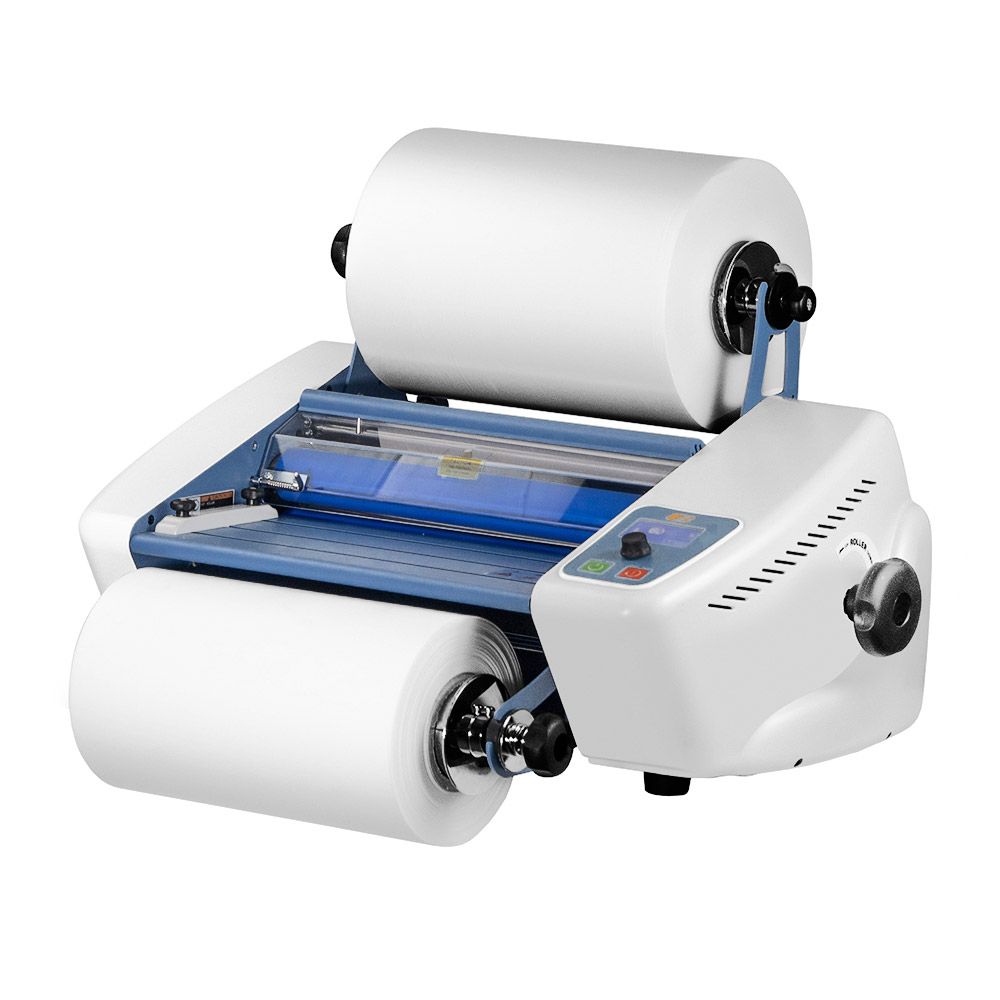

Plasti 330
SKU DPG330M
Avail. Available

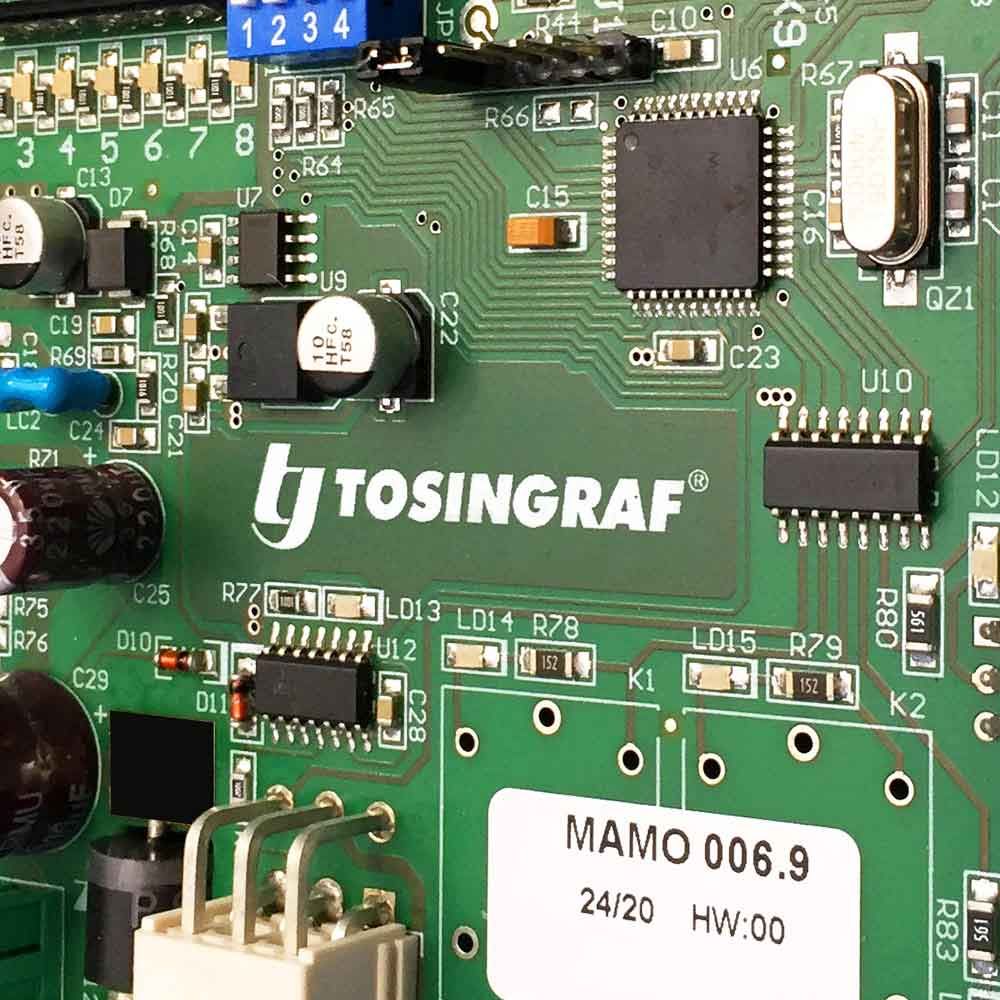

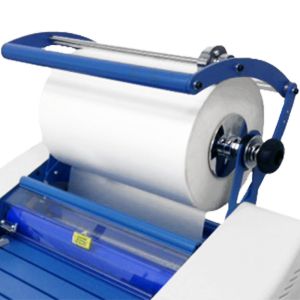

Reel laminator with hot rollers to be used both for single or double side lamination jobs. Perfectly flat single side lamination is granted by adjustable anti-curling device. 1000 mt OPP film rolls can be installed on the upper reel holder so to save money on purchase of bigger rolls. Independent control of heating on both rolls so to preserve back print in case of single side lamination. Adjustable film tension with side clutch. Long lasting silicone rollers for better heat distribution. IR contactless temperature sensors measure the actual temperature on top and bottom roller for more accurate temperature set. Made in Italy PCB integrated with MSC® Interface. Optional micro-perforator on top lamination film can be installed in order to facilitate manual separation of OPP singe side laminated sheets.
Roll laminator with MSC Interface
Reel laminator with hot rollers to be used both for single or double side lamination jobs. Perfectly flat single side lamination is granted by adjustable anti-curling device. 1000 mt OPP film rolls can be installed on the upper reel holder so to save money on purchase of bigger rolls. Independent control of heating on both rolls so to preserve back print in case of single side lamination. Adjustable film tension with side clutch. Long lasting silicone rollers for better heat distribution. IR contactless temperature sensors measure the actual temperature on top and bottom roller for more accurate temperature set. Made in Italy PCB integrated with MSC® Interface. Optional micro-perforator on top lamination film can be installed in order to facilitate manual separation of OPP singe side laminated sheets.
Max paper width: 360 mm
Max laminating film width: 340 mm
Max laminating speed: 1.6 m/min.

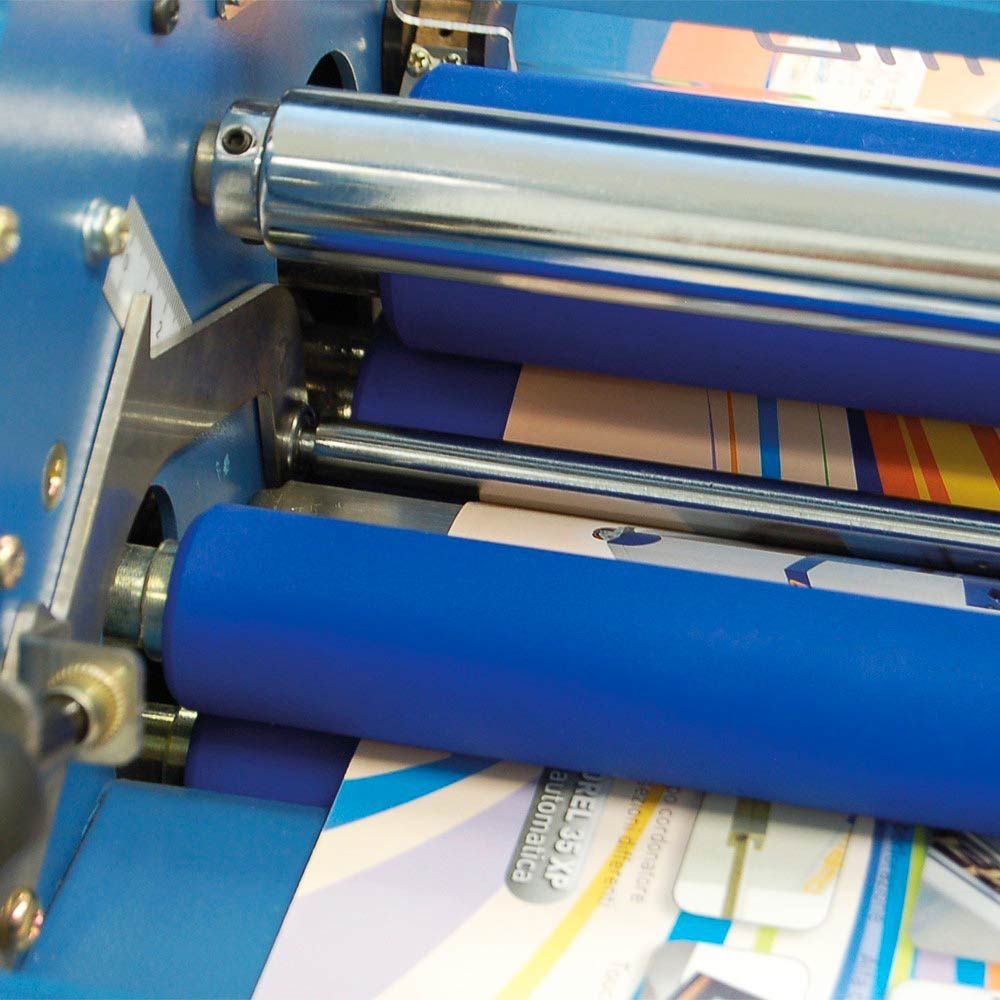

Max temperature: 170°C
Max working thickness: 5 mm
Film thickness: 25 - 250 micron
Pressure adjustment: manual
Reverse function: yes

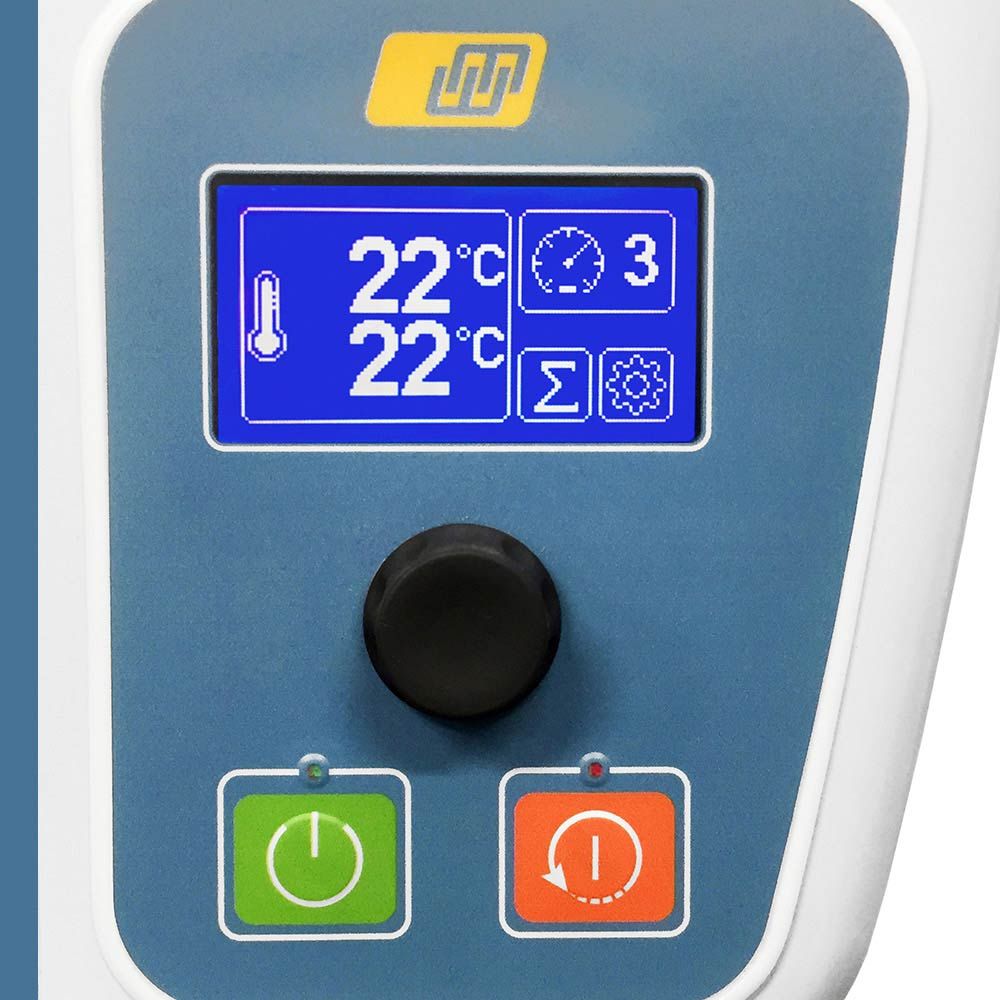

Control system: MSC® Interface
Power supply: 230 V - 50/60 Hz
Power consumption: 700 W
Dimensions: 670x440x310 mm
Weight: 33 kg
