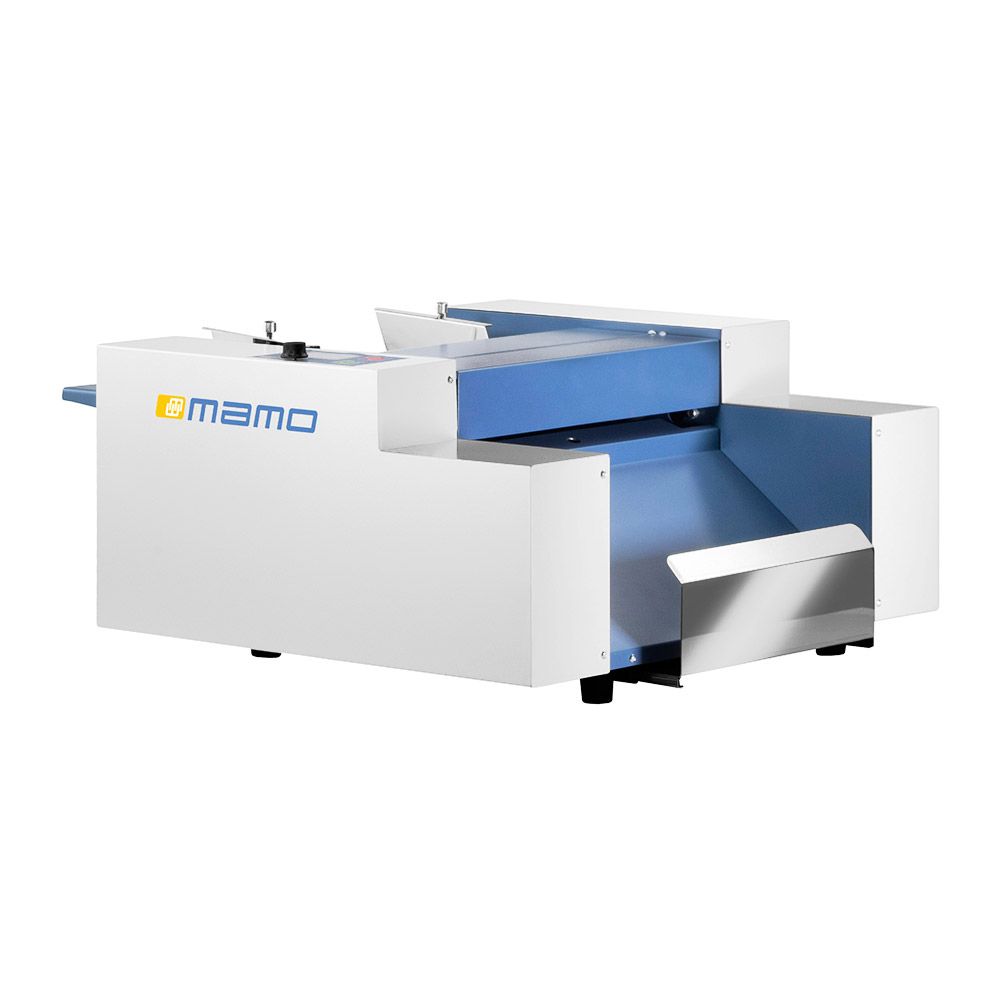

MICROPERF A3
A3 micro-perforation machine with friction feeder
MicroPerf A3 is an automatic rotary micro-perforating machine with a friction feeder.
Adjustable speed up to 13,500 A5 sheets/hour. Paper weight (uncoated): 45–350 gsm.
High loading capacity, up to 500 sheets (80 gsm). Allows quick correction of any print alignment errors.

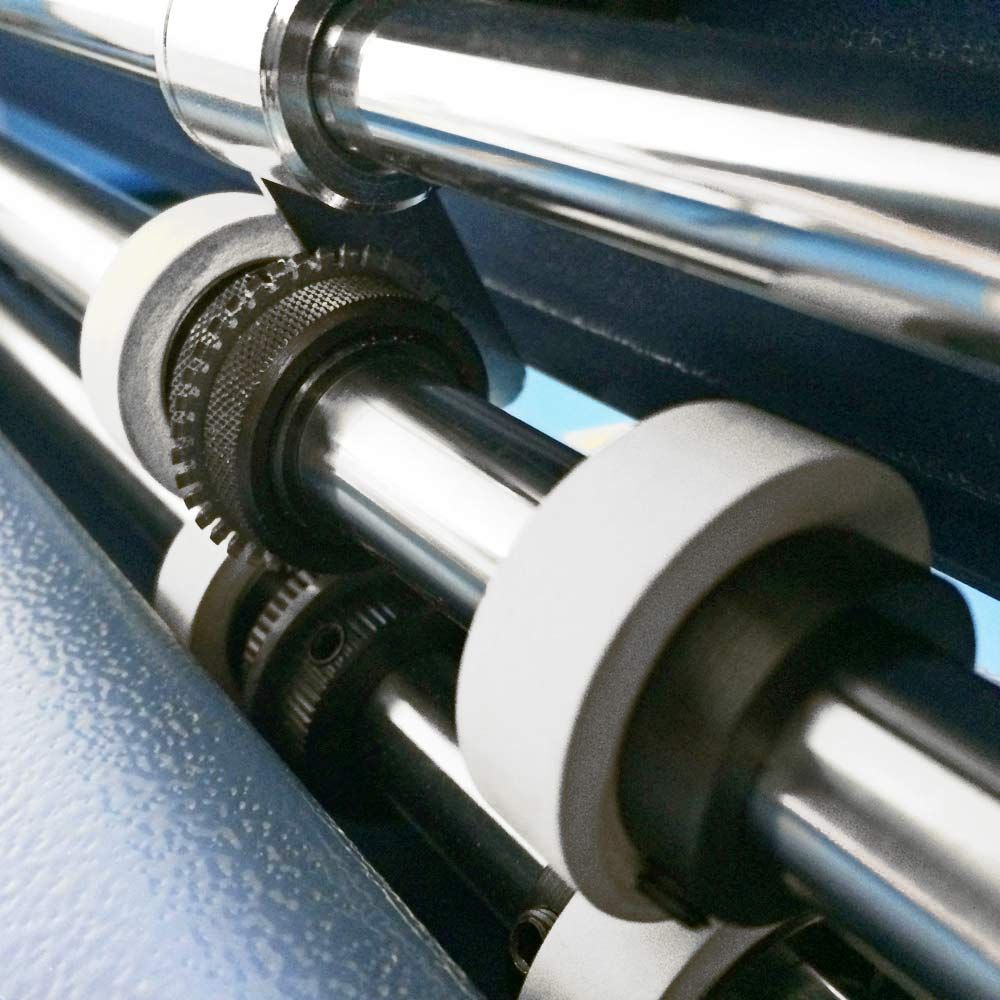

Supplied as standard with one perforating die. Allows the installation of up to 5 dies with a minimum spacing of 30 mm between each.
Innovative MSC® Interface user interface.
Minimum paper size: 85 x 128 mm
Maximum paper size: 320 x 500 mm
Paper weight: 45–350 gsm
Adjustable speed: up to 13,500 A5 sheets/hour
Friction-feed paper feeder

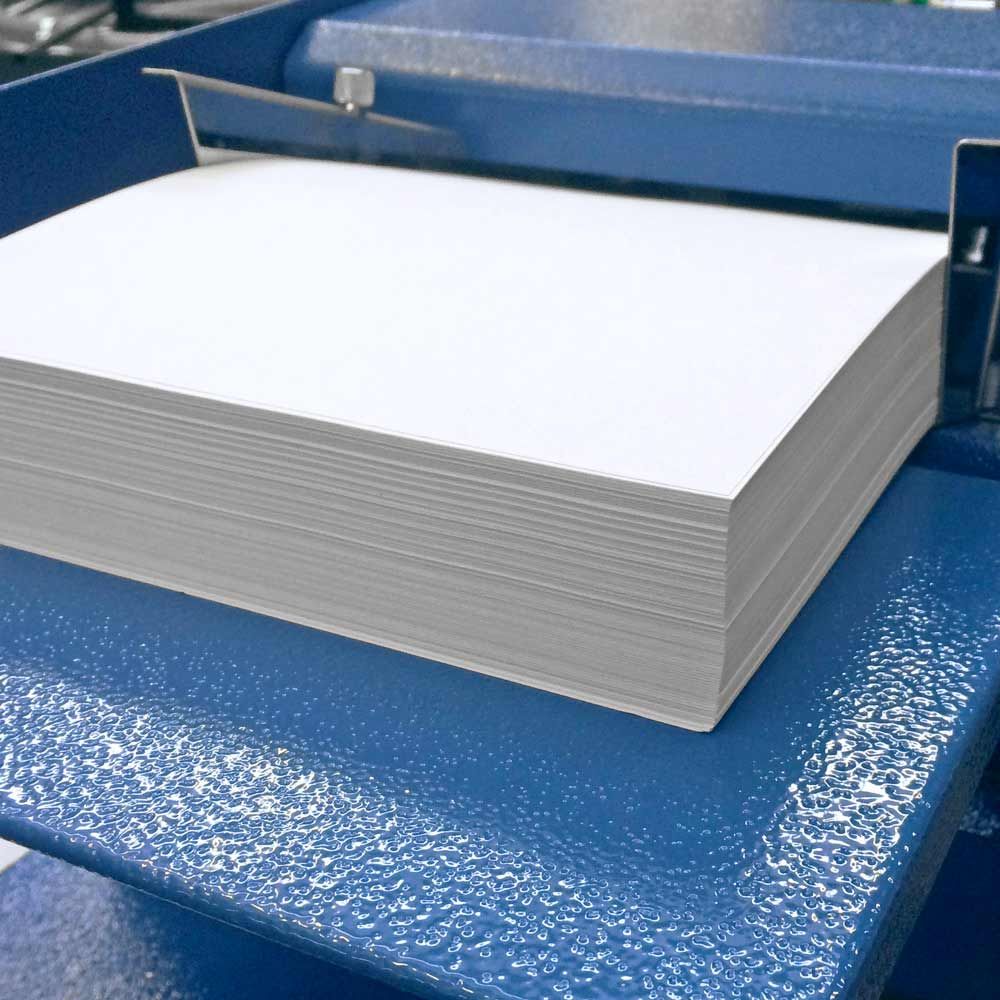

High-pile tray with 500-sheet capacity
3 feed rollers

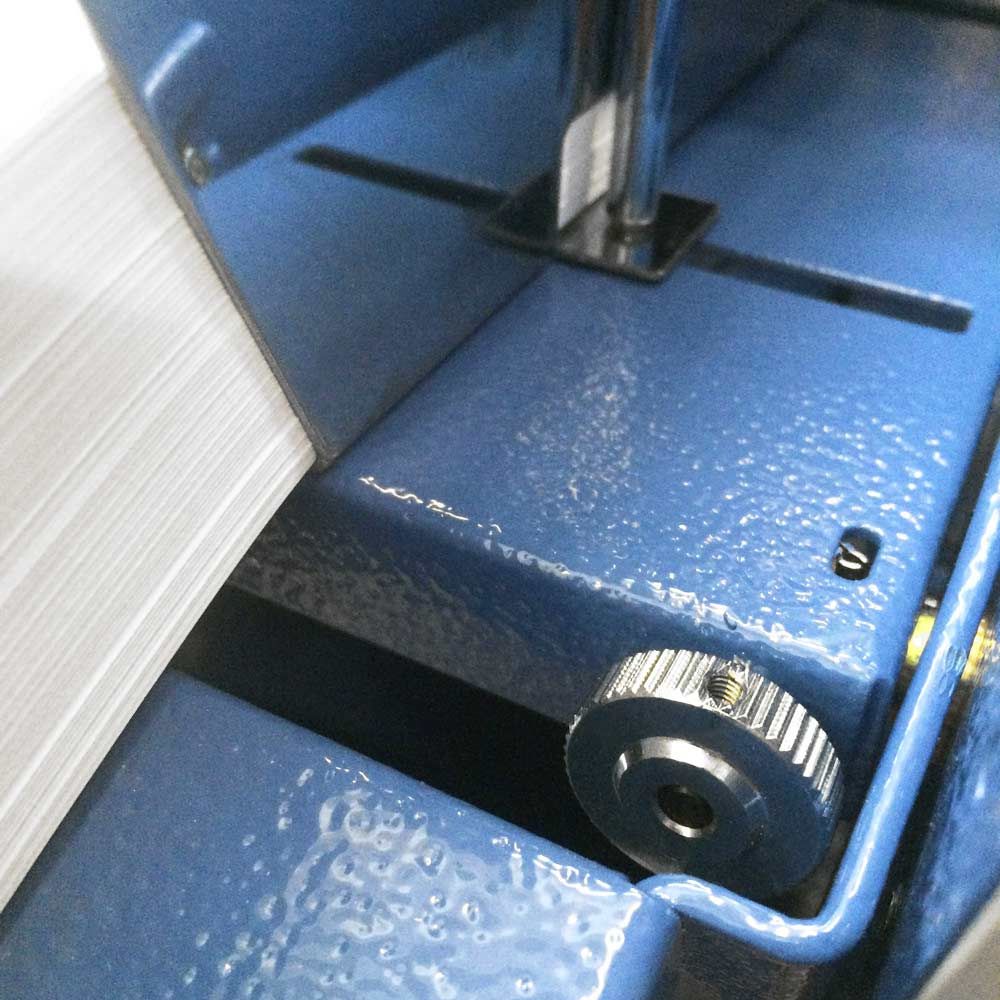

Side guides and metric scales
Feeder skew adjustment
Allows installation of up to 5 perforators
Digital control panel
Batch counter with automatic stop upon reaching preset quantity
Voltage: 230V, 50Hz
Power consumption: 80W
Dimensions (WxDxH): 470 x 530 x 280 mm
Weight: 25 kg
