Piega A3 Sup

SKU DPTG2007
Avail. Not available
tosingraf
Piega A3 Sup is equipped with an innovative feed table, similar to a high-pile feeder.This feature, combined with automatic adjustment, allows you to fold paper of different weights simultaneously.A3 paper folding machine with an excellent price-to-performance ratio.
Available
Not available

Create your account

Access to product prices and save time by placing orders online

Delivery in 2/3 business days
Secure payments

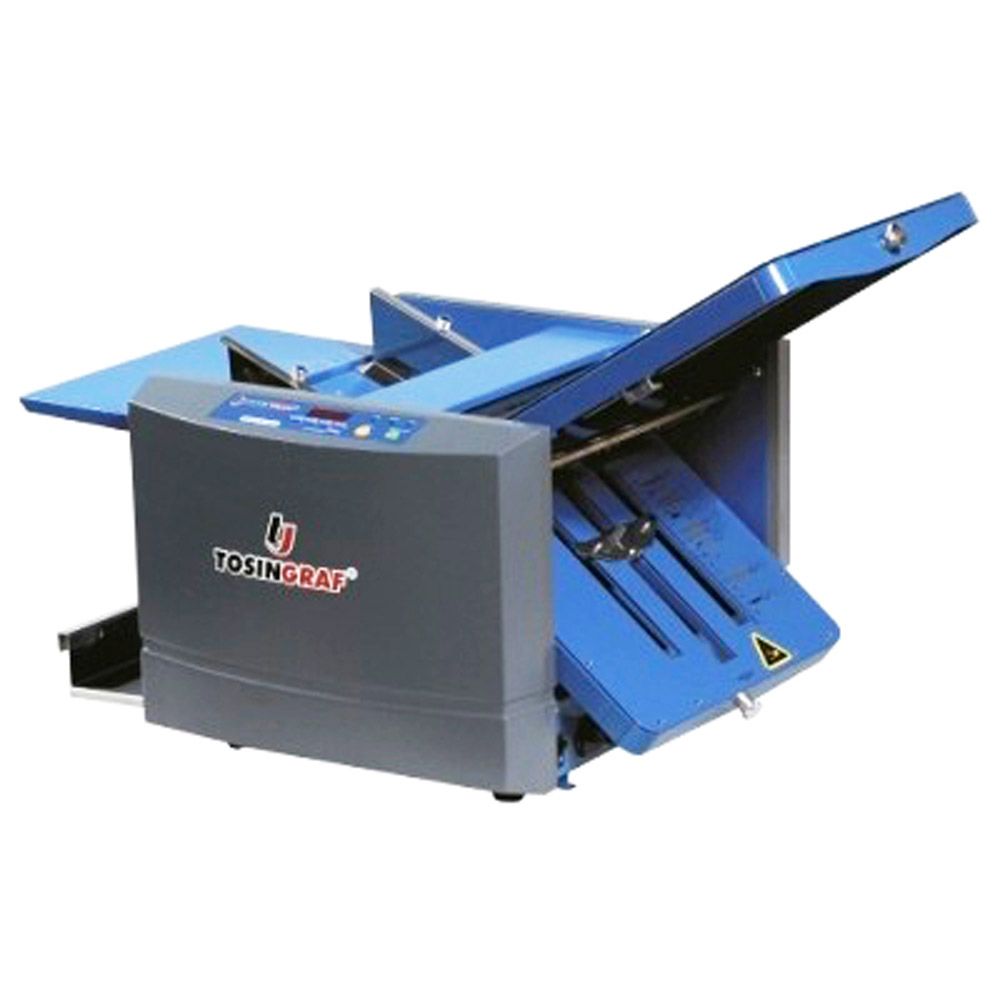

A3 folding machine with friction feeder

Piega A3 Sup is equipped with an innovative feed table, similar to a high-pile feeder.

This feature, combined with automatic adjustment, allows you to fold paper of different weights simultaneously.

A3 paper folding machine with an excellent price-to-performance ratio.
Minimum paper size: 128 x 182 mm (B6)

Maximum paper size: 297 x 432 mm (A3)

Fold plates: 2 adjustable

Paper weight (single fold): up to 220 gsm

Paper weight (double fold): 70 to 135 gsm

Fixed speed: 8,000 A4 sheets/hour

High-pile tray feeder (3 feed rollers)

Capacity: approx. 500 sheets

Side guides and metric scales

Digital control panel

Batch counter with automatic stop upon reaching target quantity

Electric exit conveyor: adjustable with rollers

Voltage: 220V AC, 60Hz

Power consumption: 50W

Dimensions (WxDxH): 820 x 530 x 520 mm

Weight: 29 kg
